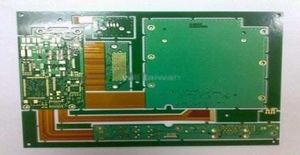

Model: Rigid -Flex board - 4 L
Layers: 4
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 5 mil / 6 mil
Finish thickness: 0.2 mm(flex). 1.2 mm
Min Hot: 0.9 mm |

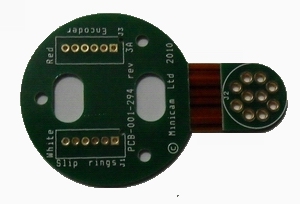

Model: Rigid -Flex board - 4 L
Layers: 4
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 4 mil / 4 mil
Finish thickness: 0.15 mm(flex). 0.8mm
Min Hot: 0.25 mm |
|

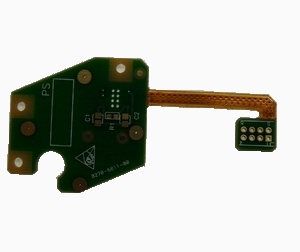

Model: Rigid -Flex board - 6L
Layers: 6
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 4 mil / 4 mil
Finish thickness: 0.1 mm (flex). 1.6 mm
Min Hot: 0.4 mm |

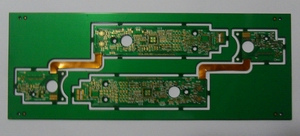

Model: Rigid -Flex board - 10 L
Layers: 10
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 4 mil / 4 mil
Finish thickness: 0.15 mm(flex). 1.6 mm
Min Hot: 0.25 mm |

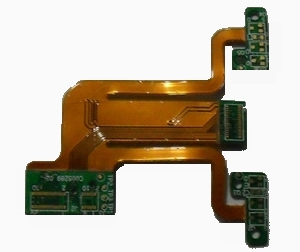

| Model: Rigid -Flex board - 4 L
Layers: 4
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 8 mil / 8 mil
Finish thickness: 0.2 mm(flex). 1.0 mm
Min Hot: 0.8 mm |
Model: Rigid -Flex board - 6 L
Layers: 6
Material: FR4 + Polyimide
Surface treatment: ENIG
Width/space: 4 mil / 4 mil
Finish thickness: 0.15 mm(flex). 1.0 mm Min Hot: 0.3 mm |
|
Model: Rigid -Flex board - 6 L
Layers: 6
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 4 mil / 4 mil
Finish thickness: 0.2 mm(flex). 0.8 mm
Min Hot: 0.3 mm |
Model: Rigid -Flex board - 6 L
Layers: 6
Material: FR4 + Polyimide
Surface treatment: Immersion Gold
Width/space: 4 mil / 4 mil
Finish thickness: 0.2 mm(flex). 0.8 mm
Min Hot: 0.3 mm |
